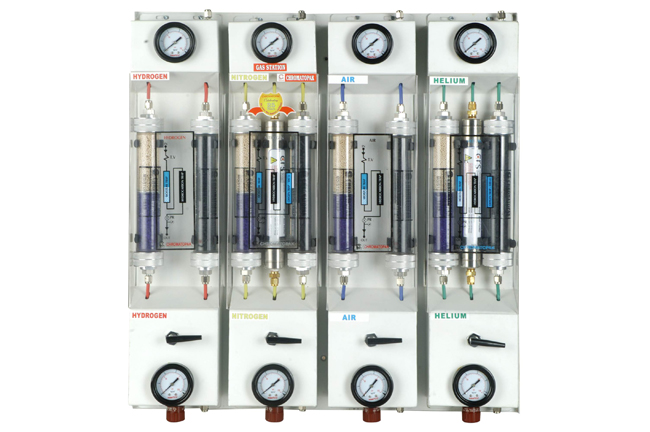

Economy Gas Station

The Chromatopak Economy Gas Station is a unit to control and purify N2, H2, Air, and He gases (as required) for subsequent use for Gas Chromatography. Each of the four gases has a designated powder coated control panel for purification and control of the designated gas with specifications as under. The unit as a whole is wall-mountable.



The Panel Designated As Nitrogen & Helium

  • Inlet toggle Valve (Brass) rated at 10 kg / cm²
  • Inlet & Outlet Pressure Gauge (0-10 kg / cm² ).
  • Outlet Pressure Regulator with a locking arrangement (0-10 kg / cm² )
  • Gas Filters (Capable of removing oxygen, moisture and hydrocarbons from N2/ Helium).
  • Oxygen Trap (CRS USA, Make) (Oxygen removal Capacity 600 cc) capable of filtering out oxygen to a level of 15 ppb.
  • Pressure Rating: 10kg / cm² MOC: Aluminum.
  • Moisture Trap: A combination of Indicating Silica gel and Molecular Sieve-for drying the gas (self – indicating).
  • Pressure Rating : 10kg / cm² MOC: Acrylic
  • Hydrocarbon Trap: A Filter consisting of Activated carbon to adsorb traces of hydrocarbons present in the gas.
  • Pressure Rating : 10kg / cm² MOC: Acrylic
  • Polycarbonate Filter Shield.
  • 1/8” Inlet / Outlet Fitting.
  • Wall – Mountable, Powder – Coated Enclosure
  • Dimensions: H: 500 x W175 mm
  • Weight: 3.5 kg.

Panel Designated As Air and Hydrogen

  •  Inlet toggle Valve (Brass) rated at 10 kg / cm.
  • Inlet & Outlet Pressure Gauge (0-10 kg / cm²).
  • Outlet Pressure Regulator with a locking arrangement (0-10 kg / cm²)
  • Gas Filters (Capable of removing moisture and hydrocarbons from the gas).
  • Moisture Trap: A combination of Indicating Silica gel and Molecular Sieve – for drying the gas in acrylic tube (self – Indicating type)
  • Pressure Rating: 10kg / cm² MOC: Acrylic
  • Hydrocarbon Trap: A Filter consisting of Activated carbon to adsorb traces of hydrocarbons present in the gas.
  • Pressure Rating: 10kg / cm² MOC: Acrylic
  • Polycarbonate Filter Shield.
  • 1/8” Inlet / Outlet Fitting.
  • Wall – Mountable – Powder – Coated Enclosure.
  • Dimensions: H: 500 x W 175mm.
  • Weight: 3.25kg
